Allsen Single Plate Check Valve
Single Plate Check Valve
Single-plate check valves are compact, lightweight non-return valves designed to prevent reverse flow while maintaining low pressure loss.
Their streamlined single-disc design enables quick closure, reducing the risk of water hammer and protecting pumps, compressors, and process equipment from backflow damage.
Suitable for horizontal and vertical installations, these valves offer dependable sealing, minimal maintenance, and excellent durability across water treatment, chemical processing, power generation, marine, and industrial utility applications.
1. BODY:
The valve body forms the primary pressure-retaining component and is designed with a compact wafer construction for easy installation between standard flanges. Manufactured from a wide range of cast iron, ductile iron, carbon steel, and stainless steel grades, it provides excellent structural strength, corrosion resistance, and long service life across diverse industrial applications.
2. DISC:
The precision-engineered single disc serves as the valve’s moving element, automatically opening under forward flow and closing when the flow reverses to prevent backflow. Available in multiple material options, the disc delivers reliable sealing performance, low pressure loss, and dependable operation under varying service conditions.
3. Cover:
The cover securely encloses the internal assembly while protecting critical components from external contaminants. It also facilitates maintenance and inspection when required, ensuring the valve remains easy to service throughout its operational life.
4. Screw:
High-strength screws securely fasten the cover to the valve body, maintaining structural integrity and leak-tight performance under operating pressure. Precision fastening ensures reliable assembly and long-term durability.
5. EYE-BOLT:
The eye bolt provides a safe and convenient lifting point during transportation, installation, and maintenance. Designed for secure handling, it helps simplify valve positioning while reducing the risk of damage during lifting operations.
6. O-RING:
The O-ring provides a reliable static seal between mating components, preventing leakage and maintaining pressure integrity. Multiple elastomer options are available to suit different operating temperatures, pressures, and process media, ensuring dependable sealing performance across a wide range of industrial applications.
SPECIAL FEATURES

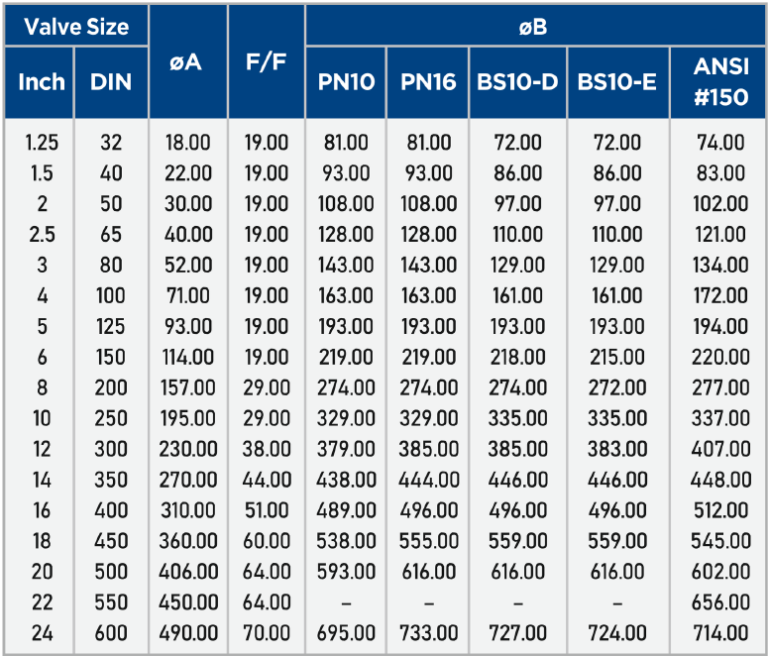

Design & Flange Standards: DIN EN 1092 (PN6, PN10 & PN16), Class 150, BS 10 Table D & E, ANSI B16.5 Class 150, ASME B16.5
Testing Standard: API 598
Face-to-Face Dimension: API 6D / ASME B16.10
DESIGN FEATURES
Compact wafer design for space-saving installation
Automatic non-return operation without external actuation
Low pressure drop for improved flow efficiency
Reliable backflow prevention
